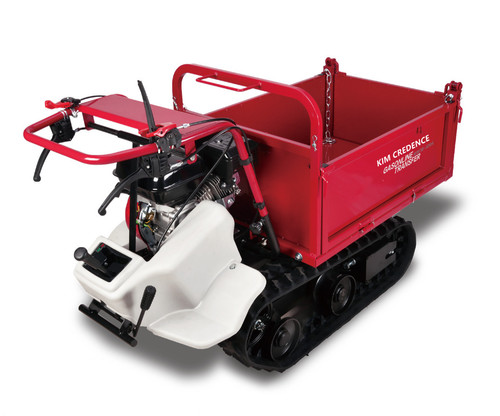

WM7B-320A MINI-TRANSPORTER
Price(USD):
$0.00
Collection:0
Description: See below
Code: WM7B-320A
Specification: MINI-TRANSPORTER
Quantity:
Specification
7B-320 type mini-transporter design with small shape、heavy loading ability、lower intensity of pressure to ground、simple operation、good trafficability etc.,which be priority recommend for rural management transporter
Model7B-320A
Machine dimension1600×600×830
Cargo inner dimension840×570×290
Track length on the ground(mm)650
Track center distance (mm)410
Loading casebottom plateheight(mm)295
Dump typemanual
Dump angle60°
Engine ModelWM168FA/P
Walking performance
Forward 1(km/h)0.5
Forward 2(km/h)0.8
Forward 3(km/h)1.3
Forward 4(km/h)1.8
Forward 5(km/h)3
Forward 6(km/h)4.9
Reverse 1(km/h)0.6
Reverse 2(km/h)2.3
Minimum radius of gyration (m)1.15
Climbing ability angle25°
Brake typeinternal expanding
Transmission lubricantGL-4
Transmission oil level1.5
Package dimension1270×760×1000
