Product Detail
Collection

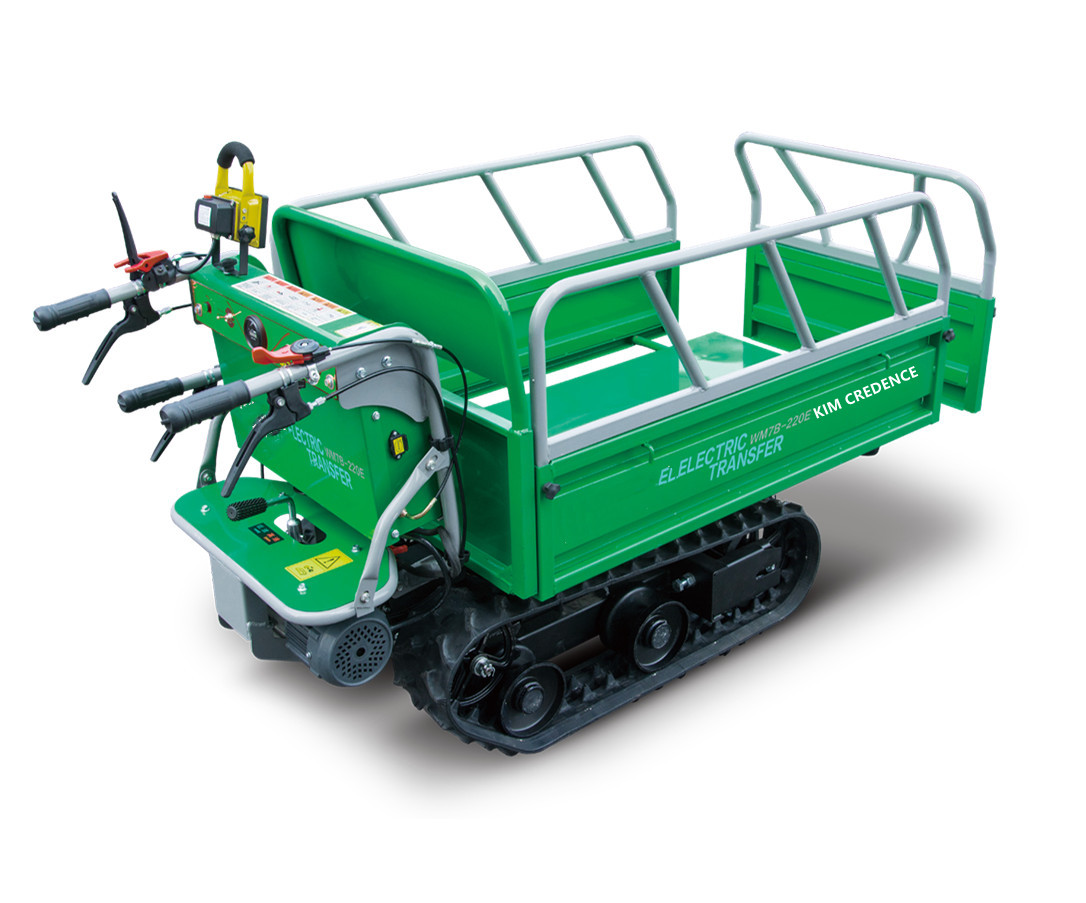

WM7B-220E MINI-TRANSPORTER
Price(USD):
$0.00
Collection:0
Description: See below
Code: WM7B-220E
Specification: MINI-TRANSPORTER
Quantity:
Specification
7B-220E type mini-transporter design with small shape、heavy loading ability、lower intensity of pressure to ground、simple operation、good trafficability etc.,which be priority recommend for rural management transporter
ModelWM7B-220E
Machine dimension (mm)1740×700×910
Cargo inner dimension (mm)1110×630×490(Without fence height)
Track size (mm)160×60×37
Center distance for Cargo (mm)410
Track length (mm)640
Net weight (kg)222
Maximum loading weight (kg)450
Minimum ground distance (mm)130
Power transmission styleMotor-gearbox-track
shift of gearbox2
brake formextranet shoe
MotorBrushless DC motor
Rated power of motor (W)800
Max power of motor (W)2400
Voltage (V)60
Battery (Ah)20
Battery typelead-acid batteries,no maintenance
Maximum grade ability(emptyloading)25°
Maximum grade ability(fullloading)20°
Shifting wayhand
Charging wayExternal charger.(AC220V/50HZ)
Forward and backward shift.ON-OFF switch
Battery displaysection code display model
LightLED
Packing dimension (mm)1450*750*850



Kim Credence Power Machinery Co.Ltd.
Specialized supplier of general gasoline and diesel engine and engine power products
