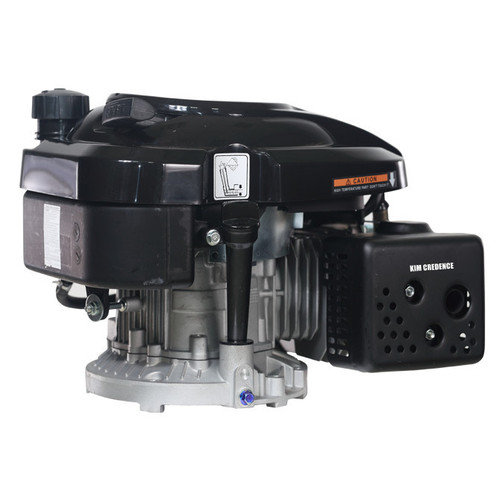

| Mode | 1P70FC | | Engine type | Single cylinder,4stroke, forced cooling ,OHV 单缸、四冲程、强制风冷、顶置式气门 | | Net power | 3.5 kW/3600rpm | | Net torque | 10.5 N.m/2500rpm | | Fuel consumption | ≤395g/kW·h | | Idle speed | 2200±150 rpm | | Bore×Stroke | 70mm×51mm | | Displacement | 196cc | | Compression ratio | 7.1:1 | | Lubrication system | Splash 飞溅润滑 | | Starting system | Recoil start 手拉反冲启动/电启动 | | PTO shaft rotation | Anti-clockwise(from PTO side) 逆时针（从输出轴端看） | | Valve Clearance | input valve： 0.10-0.15mm, | | output valve：0.15-0.20mm | | Spark plug clearance | 0.7~0.8mm | | Ignition system | Transistorized magneto ignition 晶体管无触点点火 | | Air cleaner | Semi-dry,dual element 半干、双滤芯 | | Dimension | 385×358×278mm | | Net weight | 12.8kg |
|
