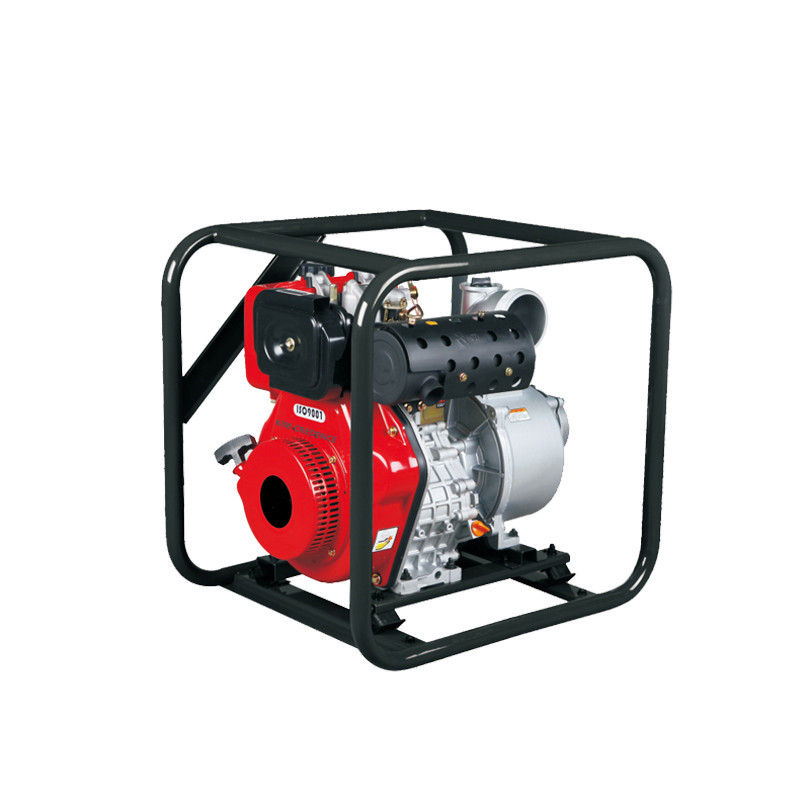

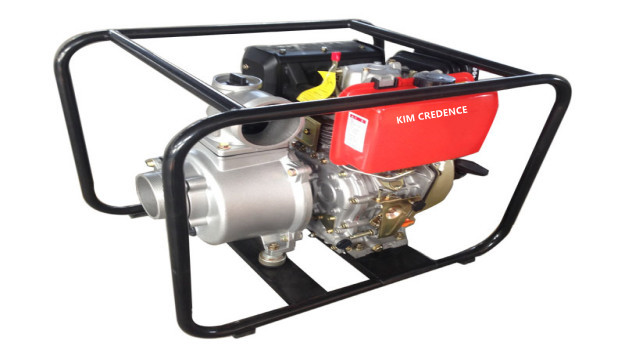

ModelSJ80WP-170F

Suction Diameter3 inch (80mm)

Discharge Diameter3 inch (80mm)

Max.Capacity (m3/hr.)60

Max.Head:23m

Suction Lift:8m

Self-Priming time:120S

Max Speed:3600rpm (adjustable)

Engine Model170F

TypeOHV Single-cylinder、vertical、air-cooled、4-stroke、direct injection

Bore×Stroke (mm)70X59

Displacement(cc)227

Compression ratio21:01

Rated power/ Rated speed (Hp/r/min)5.8/3000 6.5/3600

Max power/ Max speed (Hp/r/min)6.5/3000 7.2/3600

Lubricating systemPressure splashed

Starting systemRecoil starter

Fuel type0#、-10#、-20# diesel

Fuel tank capacity (L)/(US.Gal)C=3.5L /0.92Gal

Fuel consumption (g/hp.h/r/min)206/3000 215/3600

Lube oil typeCD grade or SAE 10W-30, 15W-40

Lube oil capacity (L)0.75L / 0.198Gal

Starting motor capacity (V、kW)12V 0.8kW

Charging generator capacity (V、A)12V 3A

Battery capacity (V、Ah)Above 12V 20Ah

Overall dimension（L×W×H）mmC=565X455X540 CL=565X455X555

Dry weight(kg)≤49（Recoil starter） ≤51.5（Electric starter）
