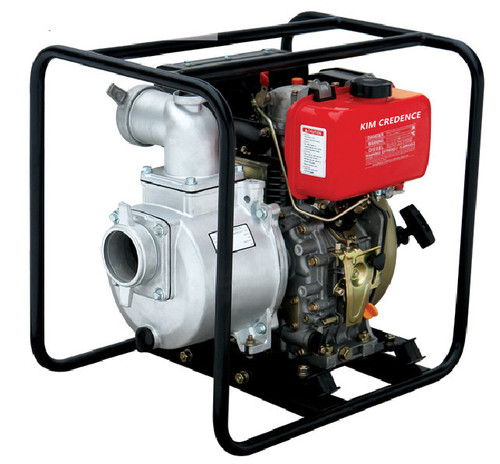

ModelSJ100WP-178F

Suction Diameter4 inch (100mm)

Discharge Diameter4 inch (100mm)

Max.Capacity (m3/hr.)60

Max.Head:25m

Suction Lift:8m

Self-Priming time:120S

Max Speed:3600rpm (adjustable)

Engine Model178F

TypeOHV Single-cylinder、vertical、air-cooled、4-stroke、direct injection

Bore×Stroke (mm)78X64

Displacement(cc)305

Compression ratio22:01

Rated power/ Rated speed (Hp/r/min)4.5/3000    5.0/3600

Max power/ Max speed (Hp/r/min)5.0/3000    5.5/3600

Lubricating systemPressure splashed

Starting systemRecoil starter

Fuel type0#、-10#、-20# diesel

Fuel tank capacity (L)/(US.Gal)2.5L/0.66Gal

Fuel consumption (g/hp.h/r/min)206/3000 215/3600

Lube oil typeCD grade or SAE 10W-30, 15W-40

Lube oil capacity (L)0.75L/0.198Gal

Starting motor capacity (V、kW)12V 0.8kW

Charging generator capacity (V、A)12V 3A

Battery capacity (V、Ah)Above 12V 20Ah

Overall dimension（L×W×H）mm565X455X540

Dry weight(kg)≤43（Recoil starter） ≤45.5（Electric starter）
