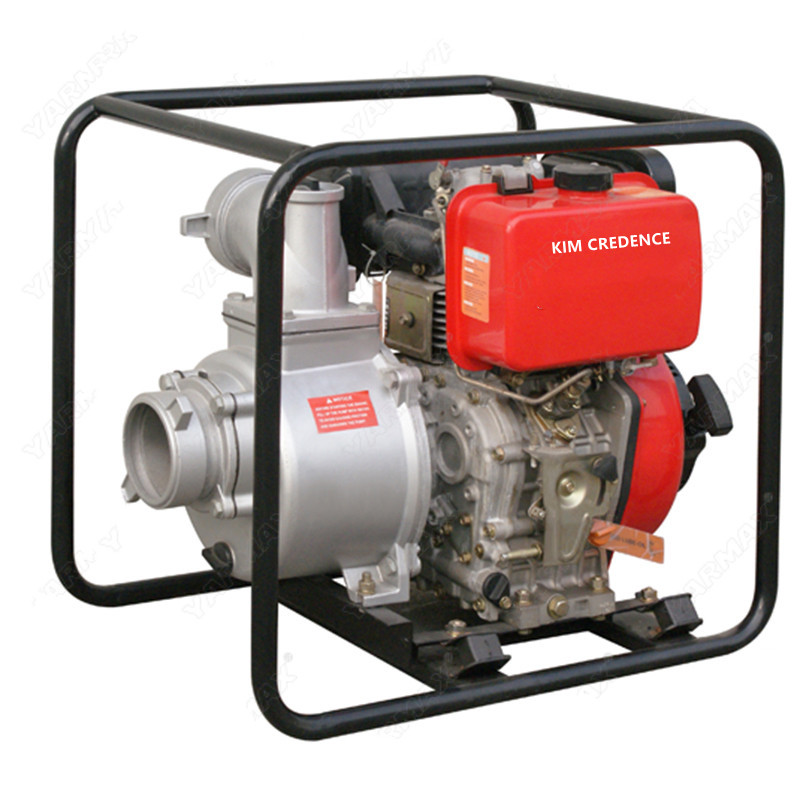

SJ100WP-186F 4 inch DIESEL WATER PUMPS
Price(USD):
$248.00
Collection:0
Description: DW15005
Code: SJ100WP-186F
Specification: 4 inch DIESEL WATER PUMPS
Quantity:
Specification


Model:SJ100WP-186F

Suction Diameter:4 inch (100mm)

Discharge Diameter:4 inch (100mm)

Max.Capacity (m3 / hr.):96

Max.Head:25m

Suction Lift:8m

Self-Priming tim: 180S

Max Speed:3600rpm (adjustable)

Engine Model:86F

Type:OHV Single-cylinder, vertical, air-cooled, 4-stroke, direct injection

Bore × Stroke (mm) :6X70

Displacement (cc):406

Compression ratio :2:01

Rated power / rated speed (Hp / r / min):7.7 / 3000 9.0 / 3600

Max power / Max speed (Hp / r / min):8.8 / 3000 10.0 / 3600

Lubricating system:Pressure splashed

Starting system:Recoil/Electrical starter

Fuel type: #, - 10 #, - 20 # diesel

Fuel tank capacity (L) / (US.Gal) C = 5.5 / 1.45 L = 12.5L / 3.3Gal

Fuel consumption (g / hp.h / r / min):201/3000 210/3600

Lube oil type CD grade or SAE:10W-30, 15W-40

Lube oil capacity (L):1.65L / 0.44Gal

Starting motor capacity (V, kW):12V 0.8kW

Charging generator capacity (V, A):12V 3A

Battery capacity (V, Ah):Above 12V 20Ah

Overall dimension (L × W × H) mm C = 645X475X605 CL = 645X475X690

Dry weight (kg) 67 (Recoil starter) 70.5 (Electric starter)
